Steel Stud Framing and Light-Gauge Metal Framing – Washington, DC

Professional Metal Stud Framing Services in Washington, DC

BBCDC Construction & General Contractors delivers expert light-gauge steel framing and metal stud partition installation for residential and commercial projects across Washington, DC. From non-load-bearing walls in tenant fit-outs to structural assemblies in multifamily builds, our team ensures every frame is square, true, and built to code.

What We Offer:

Light-Gauge Steel Framing

Steel Stud Framing

Interior Non-Load-Bearing Metal Stud Partitions

Cold-Formed Metal Framing (CFMF)

Ceiling and Bulkhead Framing

Wall Furring and Leveling

Fire-Rated and Acoustic Wall Assemblies

Blocking for Cabinets, TV Mounts, and MEP Systems

Key Features:

Material Thickness: Typically 25–16 gauge (0.0179” to 0.0566”)

Applications: Walls, floors, roofs, and ceilings

Durability: Resistant to fire, pests, rot, and warping

Dimensional Stability: Maintains shape regardless of moisture conditions

Sustainability: 100% recyclable material

Precision: Factory-produced for consistent quality

Common Applications:

Multi-family housing

Light commercial buildings

Load-bearing exterior walls

Floor joists and roof rafters

Backing for exterior cladding systems

Steel Stud Framing

Steel stud framing is a specific application of light-gauge metal used primarily for wall construction. These C-shaped steel members serve the same function as traditional wood studs but offer better fire resistance, long-term stability, and a cleaner finish.

Key Features:

Standard Sizes: Available in widths like 1⅝”, 2½”, 3⅝”, 4”, and 6”

Spacing: Installed at 16” or 24” on center

Installation: Attached using self-tapping screws, pneumatic pins, or welds

Compatibility: Works with drywall and common finishing systems

Pre-punched: Holes included for electrical and plumbing runs

Types of Steel Studs:

Load-Bearing Studs – Heavier gauge (20–16) for structural support

Non-Load-Bearing Studs – Lighter gauge (25–20) for interior partitions

Structural Studs – Engineered for specialized load or span conditions

Interior Non-Load-Bearing Metal Stud Partitions

These partitions divide space without bearing structural loads, making them ideal for office layouts, retail buildouts, and tenant renovations.

Key Features:

Material: 25–20 gauge steel studs

Height Limitations: Determined by stud gauge and width

Sound Control: Can be enhanced with acoustic insulation

Fire Ratings: Code-compliant options with the right gypsum assemblies

Flexibility: Easier to modify than concrete or CMU walls

Installation Process:

Attach top and bottom track

Install vertical studs at 16” or 24” spacing

Frame door and window openings

Add bracing and in-wall support as needed

Apply gypsum board or finish material

Advantages Over Wood Framing:

Fire-resistant and non-combustible

No shrinking, warping, or twisting

Resistant to mold, pests, and moisture

Straight, clean lines and easier finishing

Lightweight and easy to handle

Technical Specifications and Resources

For compliance and design guidance, we refer to:

• Steel Framing Industry Association (SFIA)

• American Iron and Steel Institute (AISI)

• Local building codes and fire-rated assembly manuals

Need expert help on your next framing project?

We serve Capitol Hill, Columbia Heights, Petworth, Navy Yard, Shaw, and the broader DC metro area.

Call or email to get started:

projectsupport@bbcbuildsdc.com

202-350-0344

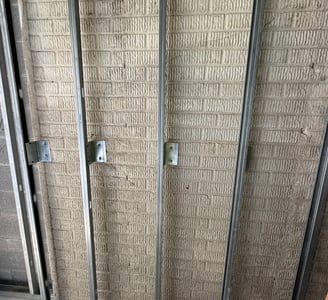

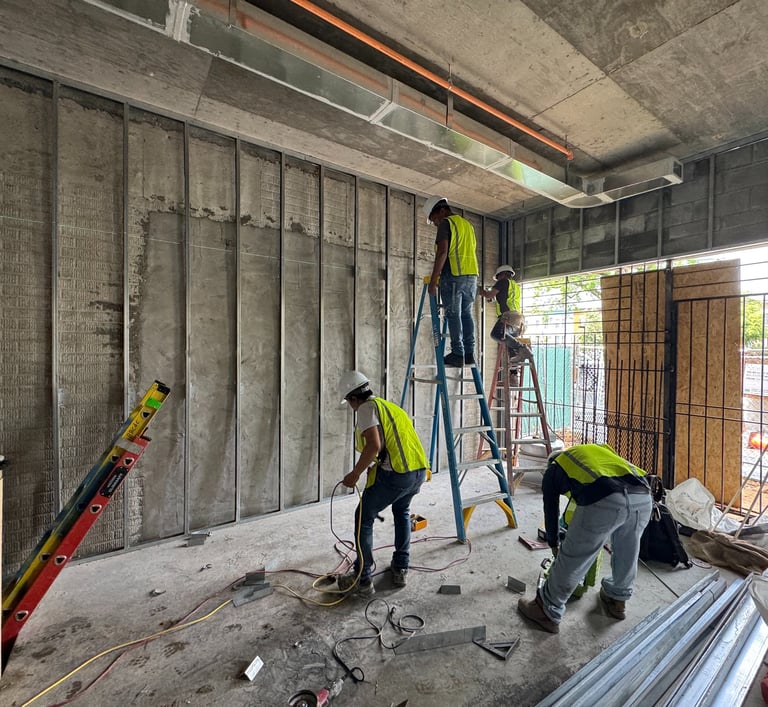

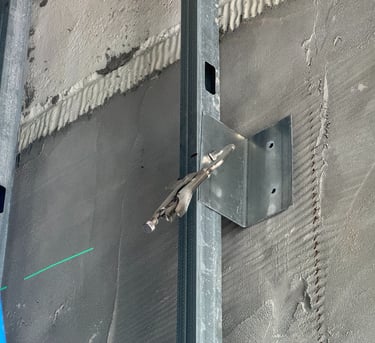

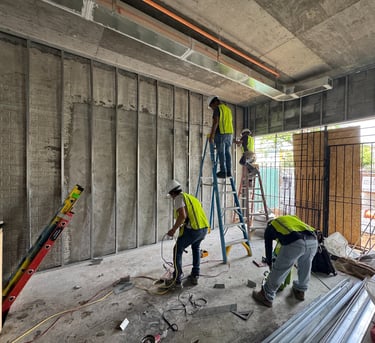

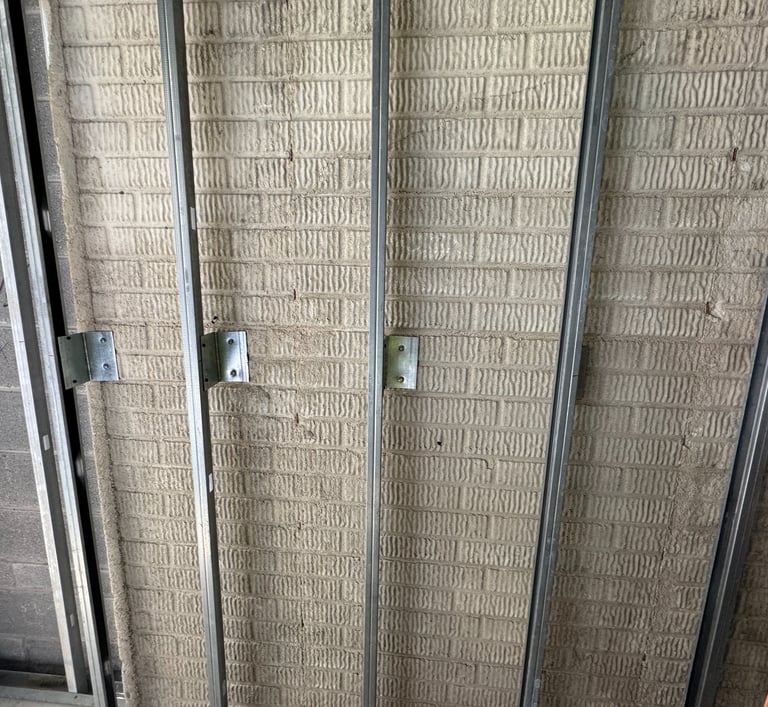

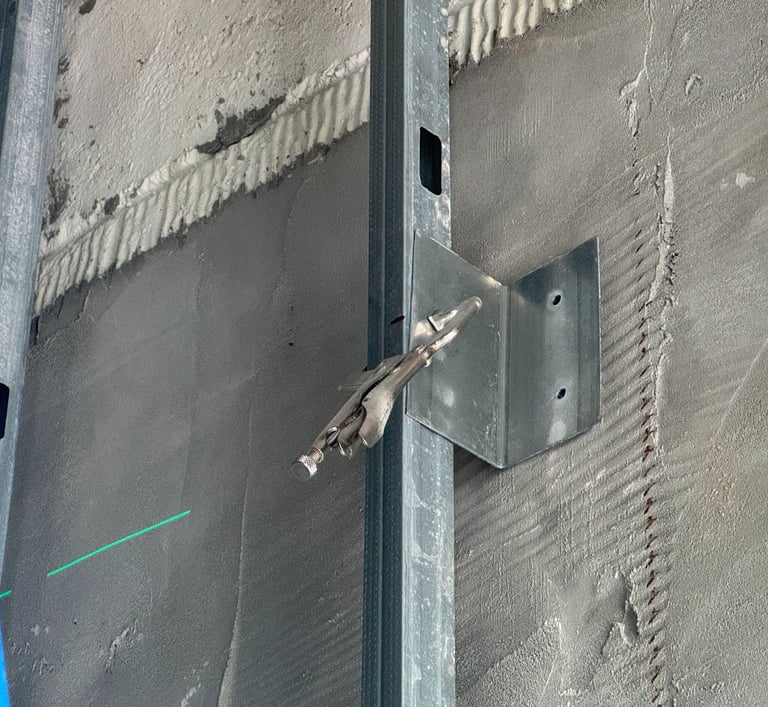

Light-gauge steel stud framing installation in a Washington DC commercial building interior
Light-gauge steel stud framing installation in a Washington DC commercial building interior
Light-gauge steel stud framing installation in a Washington DC commercial building interior
Light-gauge steel stud framing installation in a Washington DC commercial building interior
